Post by Admin Mon Mar 08, 2021 12:43 am

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE Img_2177

If you have a Type 1 S-Cross with the above Discharge headlight this "How To" will explain how to upgrade the Xenon bulbs that are available in different outputs/colour as shown below

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE Xenon-11

Compared to the LED DRL , LED Light Bar and LED Fog Lights the original Xenon bulbs had a tint of yellow and was even more visible at night

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE Img_2178

The standard 4300K bulb is Part Number 09471-12233-000 Suzuki 12v 35w D4S, D4S being the type of Xenon Discharge Bulb, to match the other LED bulbs i decided on a 6000K Bright White

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 999911


At the rear of the headlight is the cover shown below that you need to remove the phillips screw and power lead connector...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 113

The wiring connector is removed by pushing on the tab shown below...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 213

Remove the cover by rotating the plastic cover anti clockwise from the headlight housing...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 313

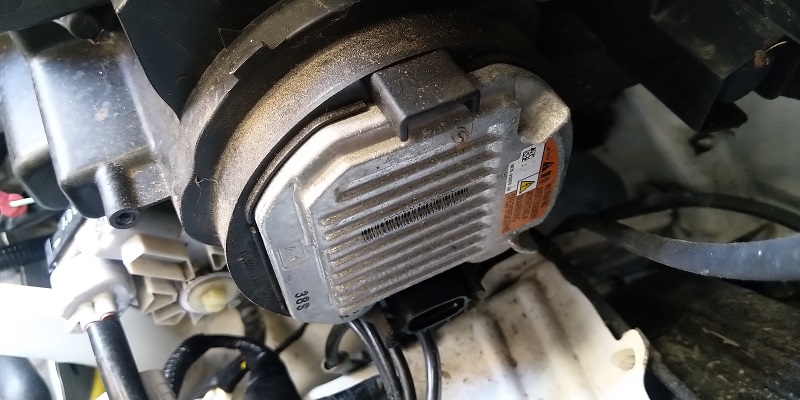

With the cover removed the balast is shown that has to be rotated anti clockwise to unlock and remove...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 412

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 512

The bulb connector is then removed again by turning anti clockwise...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 611

Allowing the whole unit to be removed...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 712

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 811

The bulb itself is retained by a wire clip that you open by pushing the clip inwards...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 912

And folding it downwards to remove the bulb...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 9912

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 99911

Refitting the bulb is a reversal of above but ensuring the radius and square locating points match as it fits in the headlight housing...

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 9999910

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 99999914

Below is a before and after picture of the original and Bright White Xenons...

4300K

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 99999915

6000K

S-CROSS TYPE 1 XENON HEADLIGHT UPGRADE 99999916

Karl
