S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE

4 posters

Go down

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE Empty S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE

Post by Admin Thu Mar 04, 2021 12:05 am

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 112

NGK SILFR6A11 LASER IRIDIUM O/E
DENSO K16HPR-U11 NICKEL
DENSO VKH20 IRIDIUM TOUGH
DENSO IKH20TT IRIDIUM TWIN TIP


Undo the retaining clip and remove the rubber airbox to throttle body pipe...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 212

Remove the air intake pipe, this is just a push fit...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 312

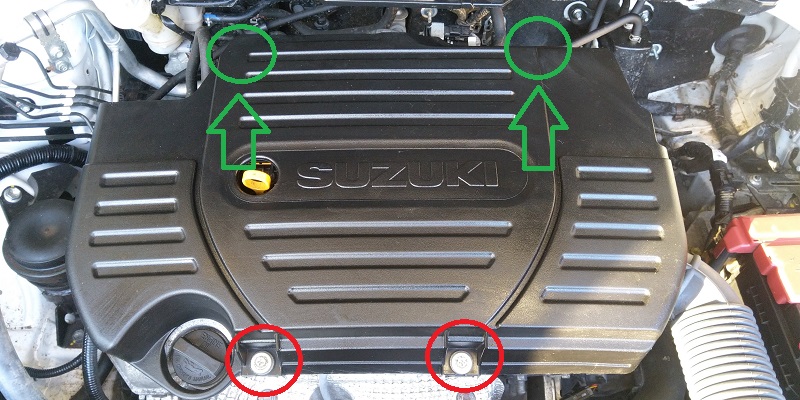

Undo and remove the two 10mm headed bolts (circled in red) and pull the complete airbox upwards near the green circles to remove the push fit retaining pegs...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 411

With the airbox removed you can see the 4 coil packs and the 4 10mm headed bolts that have to be removed...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 511

The first three coil packs can be removed with the wiring connected, place these gently on the front slam panel...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 610

Disconnect the wiring from number 4 and remove the final coil pack...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 711

Using a 16mm Spark Plug socket remove the spark plugs...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 810

Here you can see the new Denso Iridium Tough Spark Plug next to the original NGK...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 911

Replace all 4 spark plugs and torque to 25Nm (18.4lb-ft)...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 9911

Replace the coil packs and tighten the 10mm headed bolts...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 99910

Airbox replacement is a reversal of the removal, pushing the two retaining pegs (1) into the rubber grommet, 2 x 10mm headed airbox bolts (2) , tightening the Airbox hose clip (3) and re-fitting the air inlet hose (4)...

S-CROSS SPARK PLUG REPLACEMENT 1600 M16A ENGINE 999910
